2009 Bombardier Global XRS
| Overview | |
|
Fully Enrolled on Programs 120 Month Inspection at Duncan Aviation in 2019 New Paint 2019 at Duncan Aviation Bombardier Dallas Level 3 PPI Underway |
|
| Price: | Contact Seller |
| Offered By: | Jetcraft Corporation |
| Registration: | - |
| S/N: | 9276 |
| Location: |
Dallas, Texas United States
|
| Days Active: | 1,199 days ago |
| Airframe | |
| Total Time: | 3,771 Hours |
| Landing Cycles: | 1,277 |
| Avionics | |
|

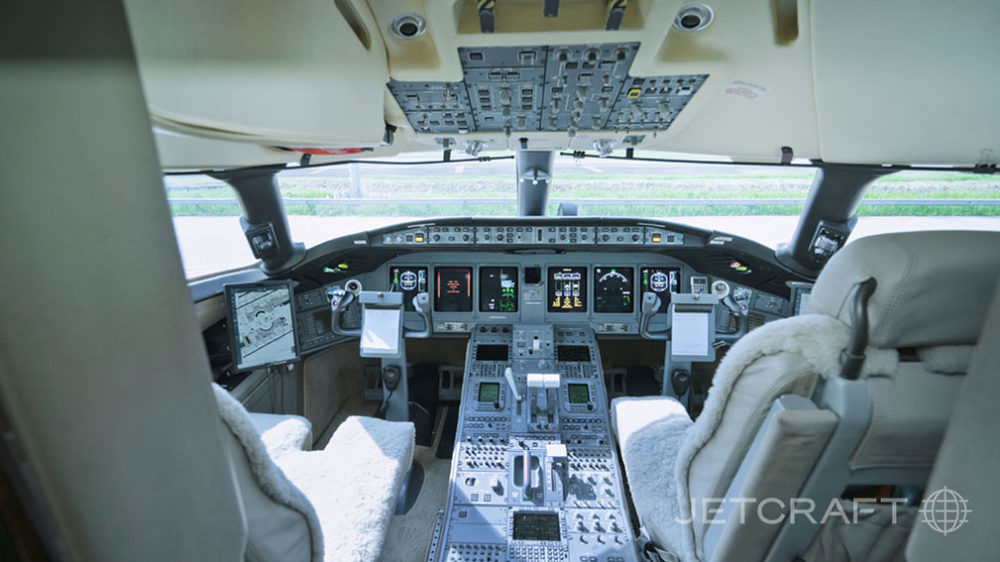

The Bombardier Global XRS is equipped with an integrated, Honeywell Primus 2000XP avionics suite. A general summary of this aircraft’s avionics suite is as follows: Type of Unit Quantity Unit Description EFIS (Electronic Flight Instrument System) Six-Tube Honeywell DU-870 FMS (Flight Management System) Triple Honeywell NZ-2000 CDU (Central Display Unit) Triple Honeywell CD-820 IRS (Inertial Reference System) Triple Honeywell LASEREF IV GPS (Global Positioning System) Dual Honeywell MADC (Micro Air Data Computer) Triple Honeywell AZ-950 NAV (Navigation Radio) Dual Honeywell RZ-851 DAU (Data Acquisition Unit) Quad Honeywell DA-810 IAC (Integrated Avionic Computer) Triple Honeywell IC-810 HUD (Head Up Display) Single Bombardier Head Up Display EVS (Enhanced Vision System) Single Bombardier Enhanced Vision System VHF COM (Very High Freq. Communications) Triple Honeywell RCZ-833M (Dual) and RCZ-833 (Single) HF COM (High Freq. Communications) Dual Collins HF-9031A SATCOM (Satellite Communications) Single Collins SRT-2100 SELCAL (Selective Calling System) Single Avtech CSD-714 WRADAR (Weather Radar) Single Honeywell WU-880 RADAR ALT (Radar Altimeter) Dual Collins ALT-4000 XPNDR (Transponder) Dual Honeywell RZ-851 EGPWS (Enhanced Ground Proximity Warning System) Single Honeywell Mark V EGPWS TCAS (Traffic Collision Avoidance System) Single ACSS RT-950 TCAS CVR (Cockpit Voice Recorder) Single Honeywell SSCVR FDR (Flight Data Recorder) Single Honeywell SSFDR ELT (Emergency Locator Transmitter) Single Artex 406 LSS (Lighting Sensor System) Single Honeywell LP-860 |
|
| Additional Equipment | |
|
ENTERTAINMENT Display / TV Monitor(s) - Single 31.5” Entertainment Monitor and Dual 24.0” Bulkhead Monitors Airshow System - Collins Airshow w/ Moving Maps CONNECTIVITY Phone System Iridium ICS-200 System OTHER NOTABLE FEATURES SB700-11-020 – Increased Maximum Take-Off Weight (MTOW) to 99,500 lbs. SB700-31-034 – Batch 3.3 Avionic Software Upgrade SB700-34-053 – FANS 1/A+ and RNP 4 SB700-34-054 – Introduction of SBAS with LPV Approach Capability SB700-34-062 – ADS-B Out (DO-260B) External Camera System |
|
| Engines | |
|
Left Engine Right Engine Description Rolls Royce BR700-710A2-20 Serial Number(s) 12665 12664 Total Cycles Since New 1,277 Cycles 1,277 Cycles Program Coverage Rolls Royce Corporate Care |
|
| Engine 1 Hours: | 3,771 SNEW |
| Engine 2 Hours: | 3,771 SNEW |
| Interior & Exterior | |
|

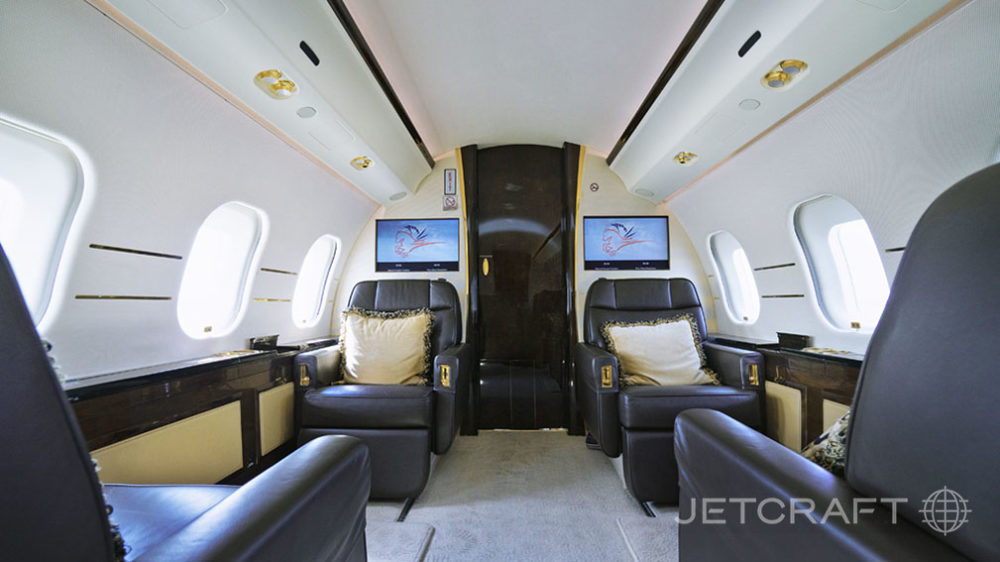

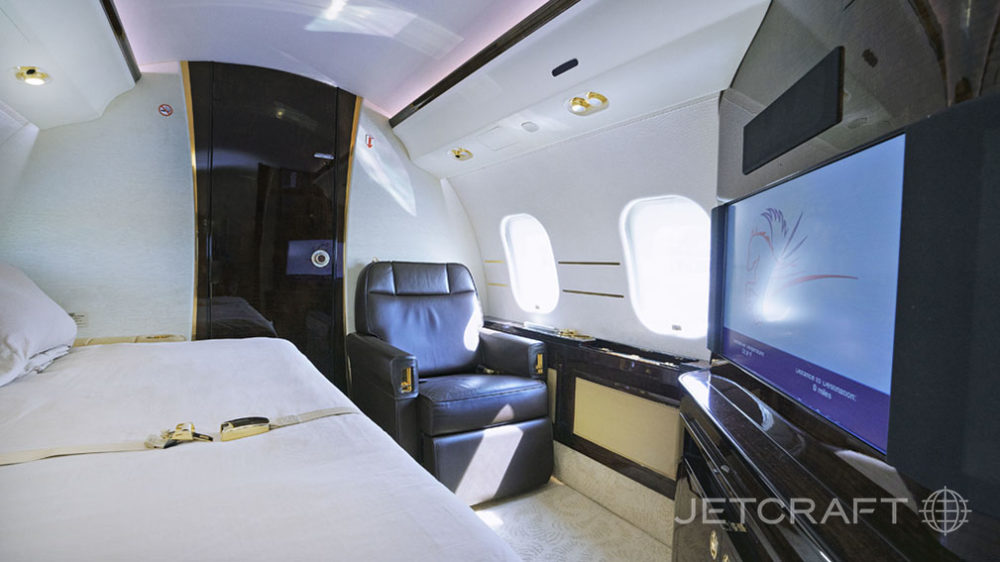

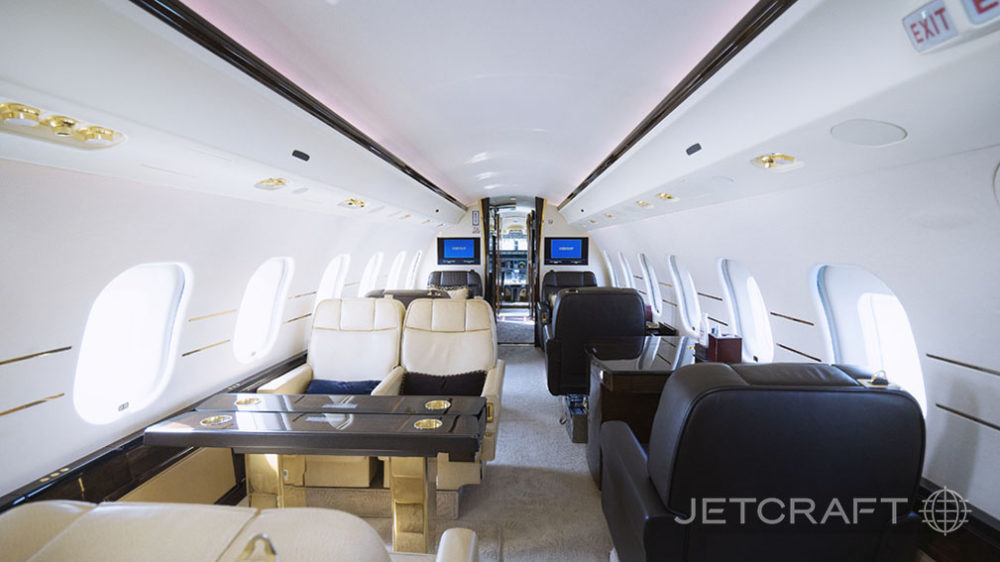

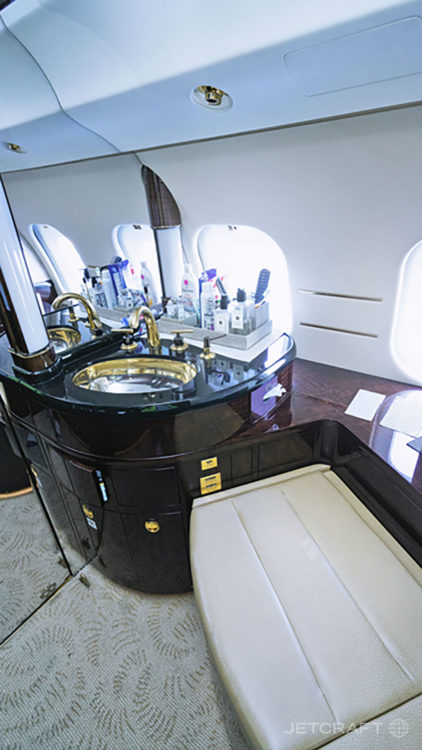

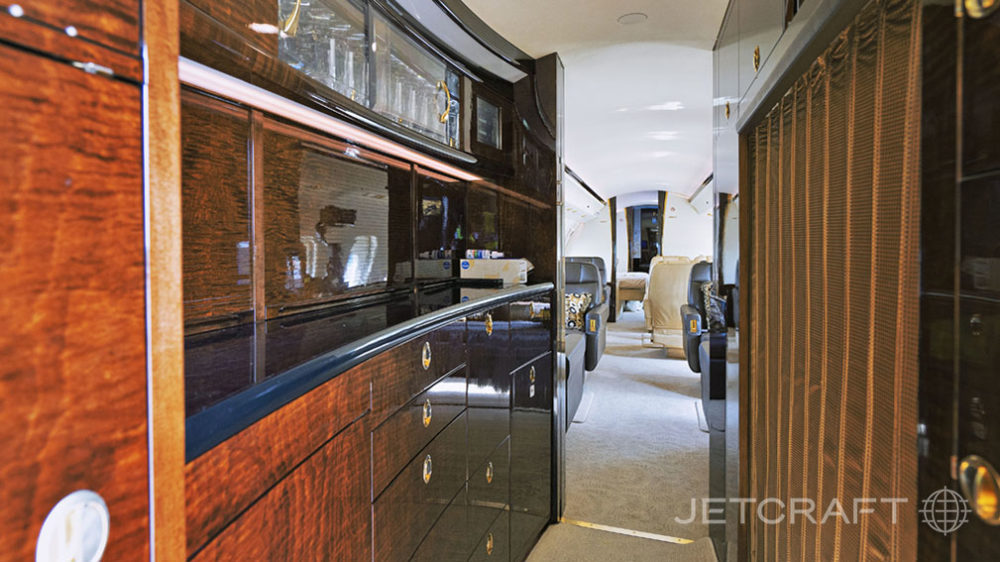

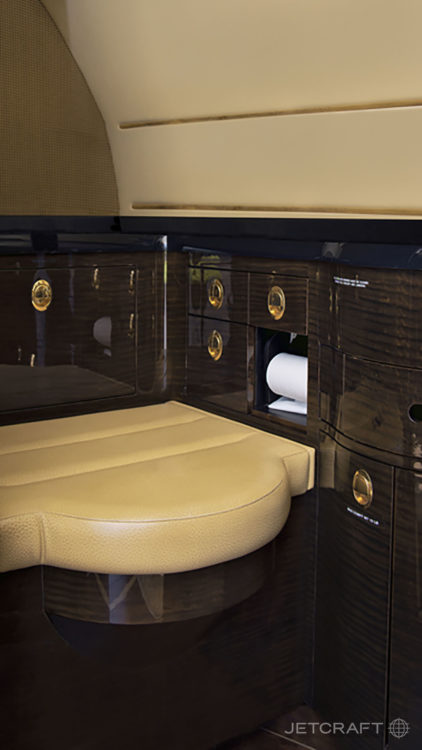

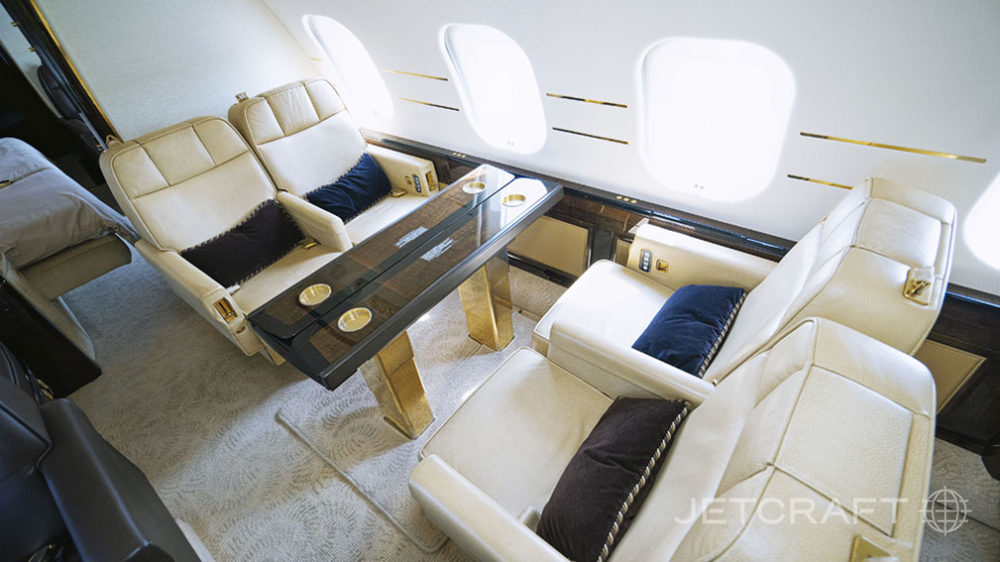

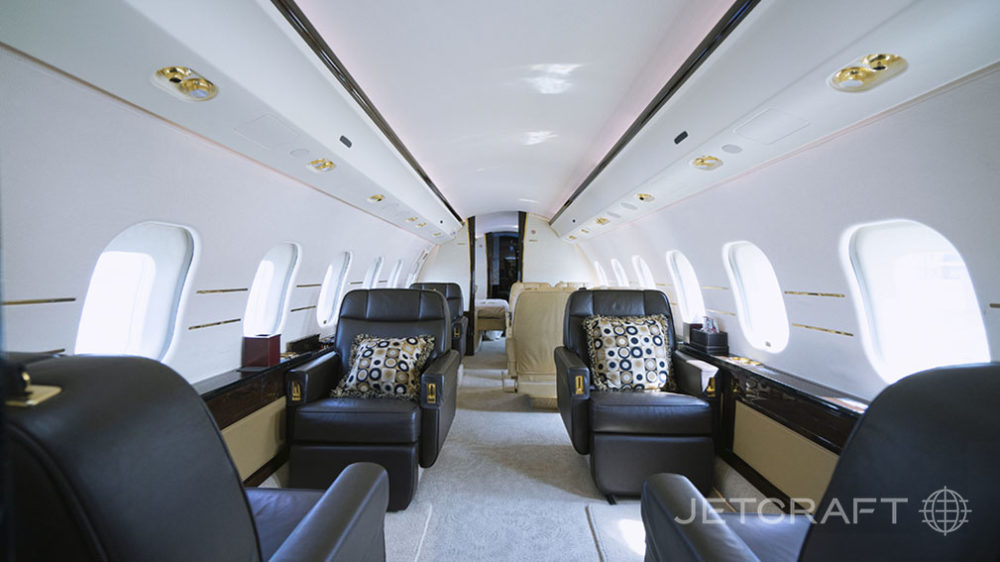

Number of Passengers - Thirteen (13) Galley Location - Forward Forward Cabin Configuration - Four (4) Place Double Club Mid Cabin Configuration - Four (4) Place Conference Group Opposite One (1) Single Seat w/ Workstation Aft Cabin Configuration - One (1) Place Single Seat w/ Entertainment Center Opposite a Three (3) Place Divan (When Bulkhead is removed) Lavatory Location(s) - Forward Crew and Aft Executive Crew Rest - Forward Jump Seat - Yes Last Refurbishment May 2019 Partial Interior Refurbishment at Duncan Aviation |
|
| Year Interior: | 2019 |
|

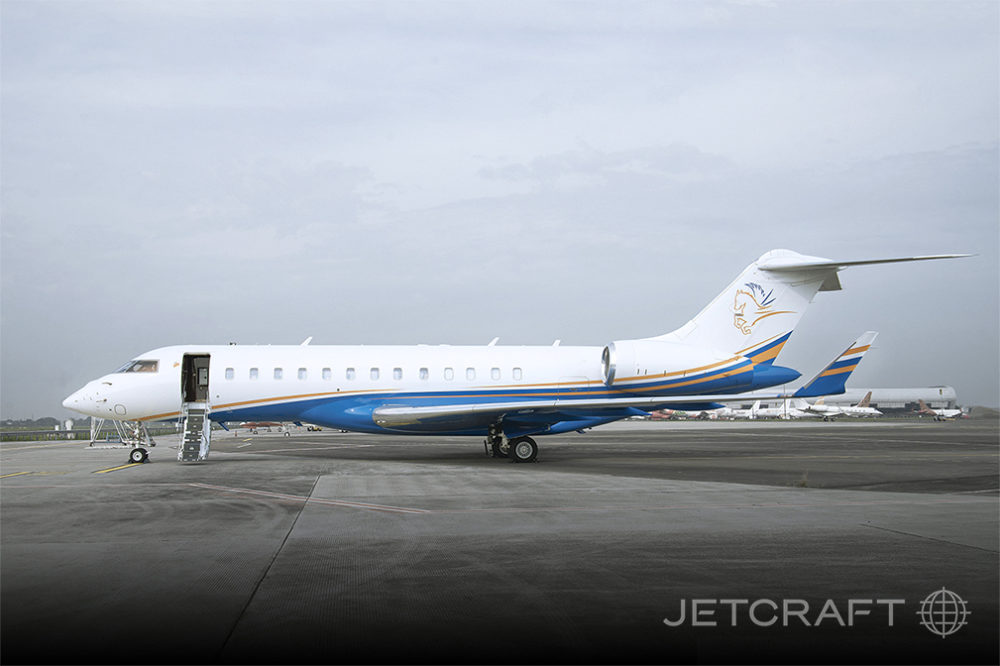

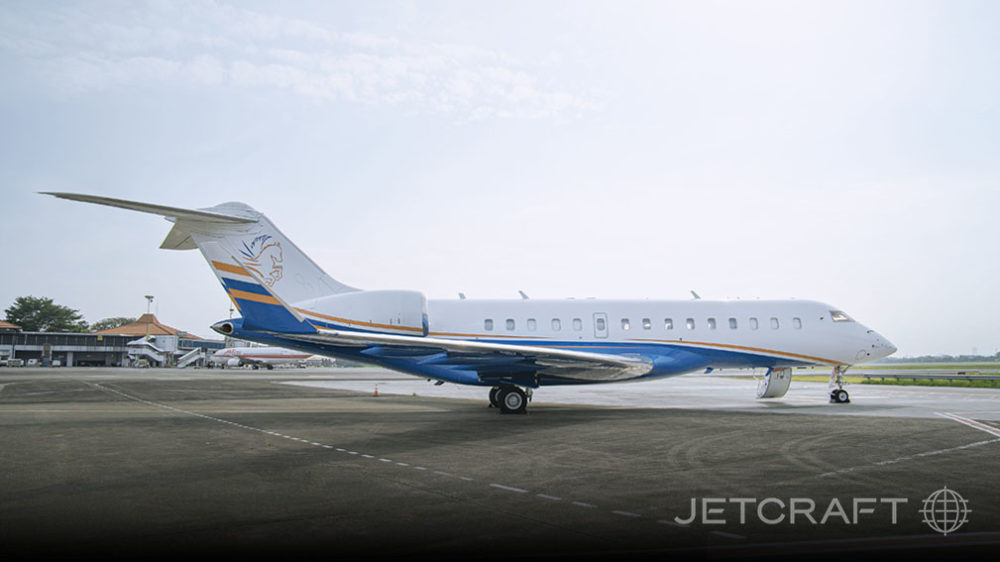

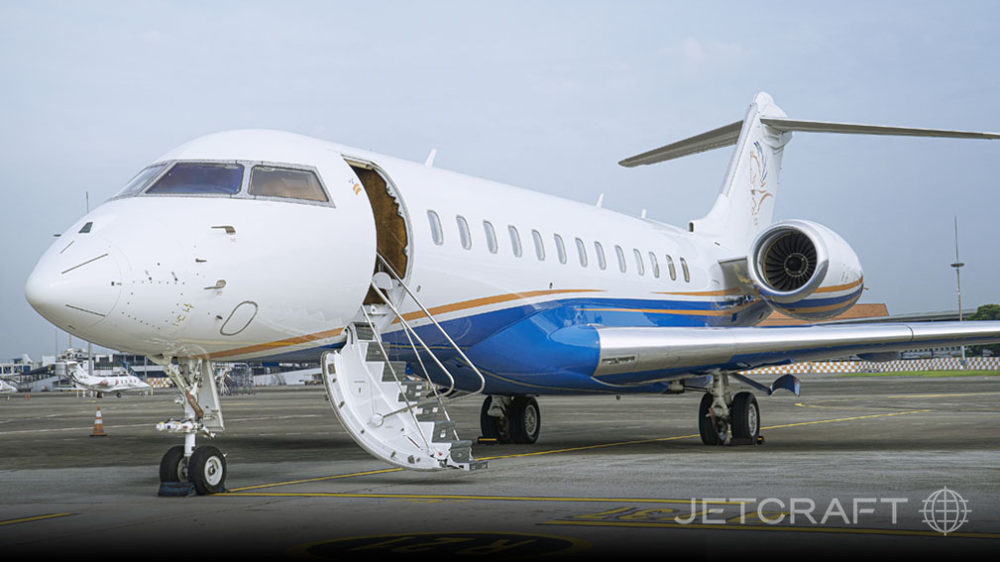

Base Paint Color(s) - Matterhorn White and Colonial Blue Belly Stripe Color(s) - Cyber Orange Last Painted - May 2019 at Duncan Aviation |
|
| Year Painted: | 2019 |
| Other Info | |
|
Inspection Status: Inspection Last Performed Next Due 15 Month January 2022 April 2023 30 Month September 2021 April 2023 60 Month May 2019 March 2024 120 Month May 2019 March 2029 |
|
